| Category | Feature & specification | Description |

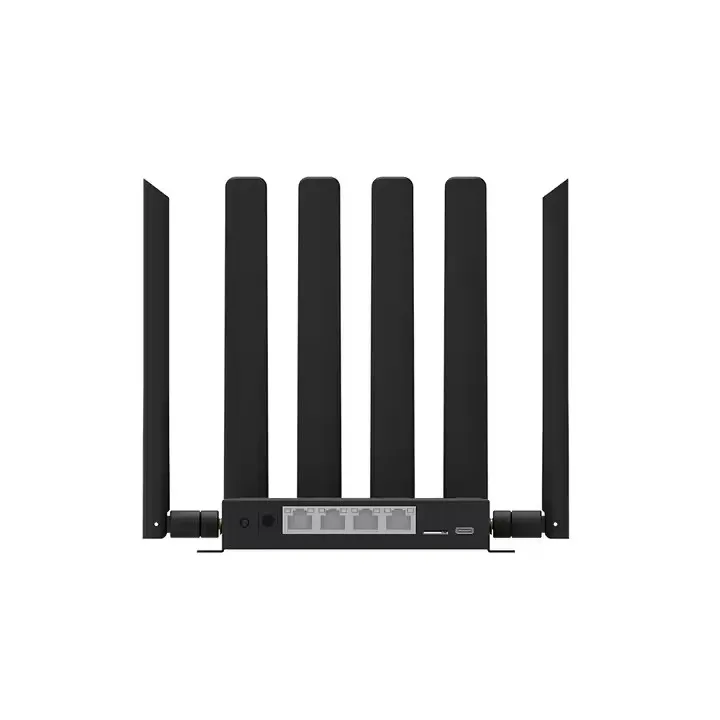

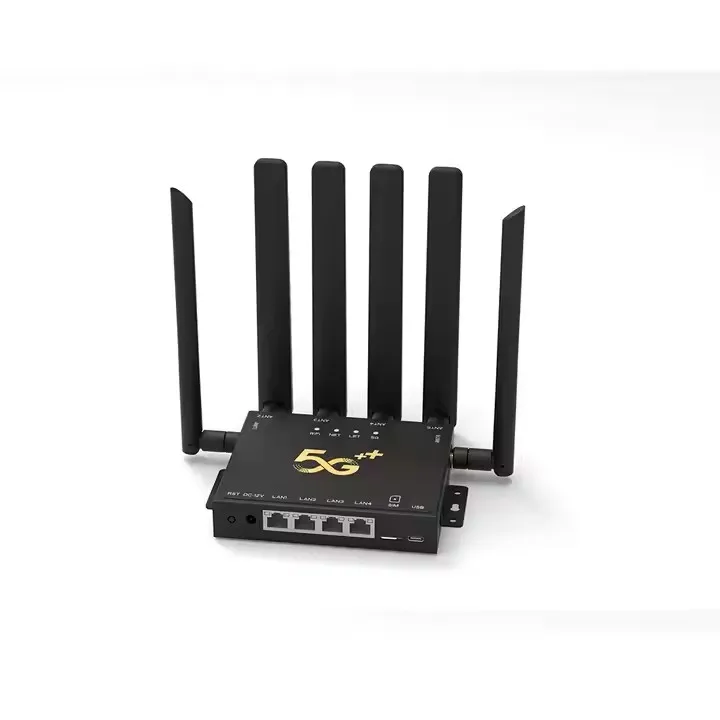

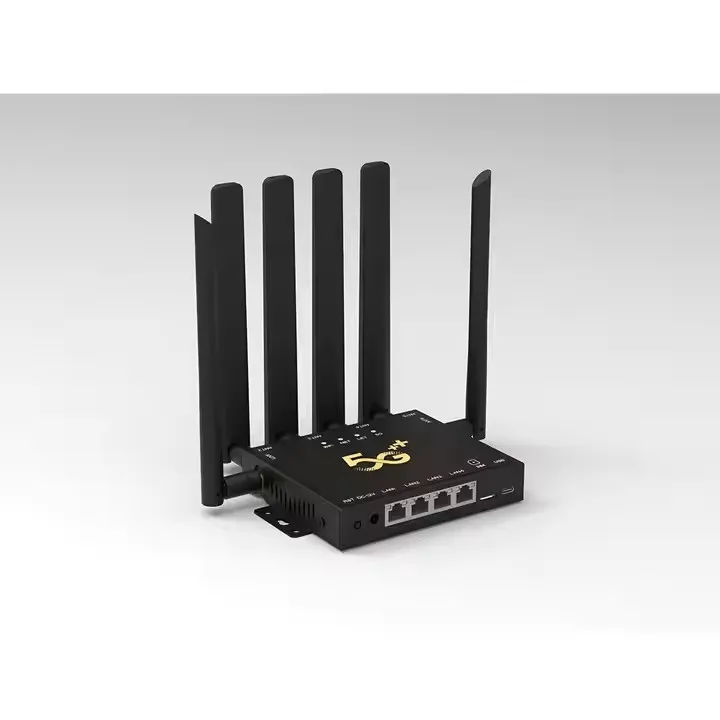

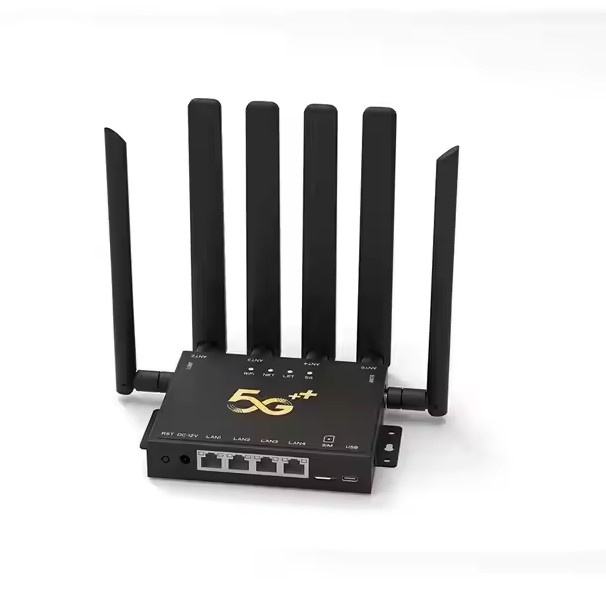

| Basical Information | Model Name | B85 |
| Form Factor | CPE | |
| Dimension | 280*178*183mm | |
| Weight | <500g | |
| Color | Black | |
| Air Interface | Technical Standard | Compatible with SA, NSA, FDD-LTE, TDD-LTE, WCDMA |
| 802.11 b/g/n/ac/ax | ||
| Frequency | 5G NR: n1/n28/n41/n78 | |
| 4G LTE: B1/B3/B5/B8/B28/B34/B38/B39/B40/B41 | ||
| 3G WCDMA: B1/B5/B8 | ||
| WIFI | 2.4&5 GHz, WIFI 4T4R, 802.11 a/b/g/n/ac/ax | |
| Performance | Maximum Data Throughput | 5G NSA: 2.5Gbps/300Mbps FDD-LTE: 1Gbps/200Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support 4×4MIMO in DL direction, Output Max Power: 21~23dBm, External | |
| Antenna 6dBi(optional) | ||
| BB Chipset | Qualcomm X55 | |
| AP+WIFI Chipset | QCA6391 | |
| Memory | 4Gb+4Gb | |
| Power Consumption | <15W | |
| Power Voltage | DC12V/2A | |
| USIM/SIM | 2FF SIM card | |
| support SIM/USIM/UIM, standard 6 PIN SIM card interface | ||
| support 3V SIM card and 1.8V SIM card, internal | ||
| push-push SIM slot | ||
| LED | SYS, LTE, SIGNAL, WiFi, WAN, LAN, SIM | |
| USB | 1 USB 2.0 port support Share | |
| Antenna | 2 x LTE 2x2 MiMo | |
| 2 x WIFI (2.4 + 5G), 4*4 MIMO Output Power 19dBm, Antenna (3dBi) | ||
| Buttons | POWER, Reset | |
| Ethernet | 4 LAN ports or 1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port | |
| Reset | Pin hole | |
| ESD | ESD Protection circuit, Contact±4KV, Air±8KV | |
| Software | SW Update | Local Update |
| WIFI Mode | AP and Station | |
| WIFI Security | 64/128 bit WEP, WPA-PSK/WPA2-PSK | |
| USB Function | File and printer sharing | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| ALG: SIP(must)/RSTP(optional) FTP(optional) |
||
| Data Statistics | Support | |
| VPN Pass Through | PPTP/L2TP | |
| SIM Lock | Support | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Certification | FCC/CE | Depends on customization, cost related |
| Environment | Operating Temperature | Normal: -15°C to +55°C |
| Storage Temperature | -20° C to +85° C | |
| Humidity | 5%~ 90% |
| Category | Feature & specification | Description |
| Basical Information | Model Name | B85 |
| Form Factor | CPE | |
| Dimension | 280*178*183mm | |
| Weight | <500g | |
| Color | Black | |
| Air Interface | Technical Standard | Compatible with SA, NSA, FDD-LTE, TDD-LTE, WCDMA |
| 802.11 b/g/n/ac/ax | ||
| Frequency | 5G NR: n1/n28/n41/n78 | |
| 4G LTE: B1/B3/B5/B8/B28/B34/B38/B39/B40/B41 | ||
| 3G WCDMA: B1/B5/B8 | ||
| WIFI | 2.4&5 GHz, WIFI 4T4R, 802.11 a/b/g/n/ac/ax | |
| Performance | Maximum Data Throughput | 5G NSA: 2.5Gbps/300Mbps FDD-LTE: 1Gbps/200Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support 4×4MIMO in DL direction, Output Max Power: 21~23dBm, External | |
| Antenna 6dBi(optional) | ||
| BB Chipset | Qualcomm X55 | |
| AP+WIFI Chipset | QCA6391 | |
| Memory | 4Gb+4Gb | |
| Power Consumption | <15W | |
| Power Voltage | DC12V/2A | |
| USIM/SIM | 2FF SIM card | |
| support SIM/USIM/UIM, standard 6 PIN SIM card interface | ||
| support 3V SIM card and 1.8V SIM card, internal | ||
| push-push SIM slot | ||
| LED | SYS, LTE, SIGNAL, WiFi, WAN, LAN, SIM | |
| USB | 1 USB 2.0 port support Share | |
| Antenna | 2 x LTE 2x2 MiMo | |
| 2 x WIFI (2.4 + 5G), 4*4 MIMO Output Power 19dBm, Antenna (3dBi) | ||
| Buttons | POWER, Reset | |
| Ethernet | 4 LAN ports or 1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port | |
| Reset | Pin hole | |
| ESD | ESD Protection circuit, Contact±4KV, Air±8KV | |
| Software | SW Update | Local Update |
| WIFI Mode | AP and Station | |
| WIFI Security | 64/128 bit WEP, WPA-PSK/WPA2-PSK | |
| USB Function | File and printer sharing | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| ALG: SIP(must)/RSTP(optional) FTP(optional) |
||
| Data Statistics | Support | |
| VPN Pass Through | PPTP/L2TP | |
| SIM Lock | Support | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Certification | FCC/CE | Depends on customization, cost related |
| Environment | Operating Temperature | Normal: -15°C to +55°C |
| Storage Temperature | -20° C to +85° C | |
| Humidity | 5%~ 90% |
